Variable Spring Hanger Type G

We provide a variety of Constant/Variable Spring Hangers and pipeline clamp bracket system products;

We can customize according to your requirements, and contact our professional managers to get more information.

Contact us :    info@topfasterner.com

Categories: , , , Tags: , ,

Description

Variable Spring Hanger Type G.

Use when headroom is limited or when obstacles prohibit the use of single rod type variable spring hangers.

1, The casing diameters shown for each spring hanger size are for all types of spring hangers.
2, The casing lengths shown are for Type G spring hangers.
3, The weights shown for all Type G spring hangers are based upon 24” center-to-center rod dimensions.

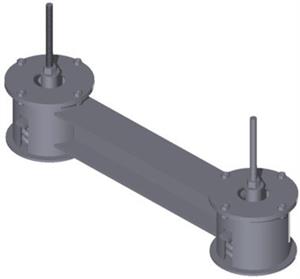

Variable Spring Hanger Type G





Variable Spring Hanger Type G

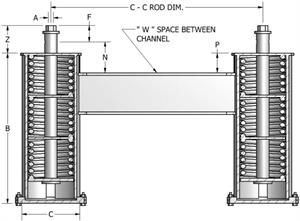

Reference indicator:

SIZE LOAD RATING EACH (LBS) WEIGHT APPROX TOTAL (LBS) ROD DIA. A (IN) R.H. TH’D L’GTH (IN) CASING LENGTH B (IN) CASING OUTSIDE DIA C (IN) MIN. TH’D ENGAGEMENT F (IN) ROD TAKE-OUT N (IN) CHANNEL SIZE MAX C – C (IN) SPACE BETWEEN CHANNELS W (IN) EDGE TO CHANNEL P (IN)
0 69 30 1-2 3 1/2 5 1/2 4 1 1/8 3  1/16 C3 X 4.1 24 5-8 1 1/2
1 100 32 1-2 3 1/2 5 1/2 4 1 1/8 3  1/16 C3 X 4.1 24 5-8 1 1/2
2 128 34 1-2 3 1/2 5 1/2 4 1 1/8 2 11/16 C3 X 4.1 24 5-8 1 1/2
3 166 38 1-2 3 1/2 5 1/2 5  9/16 1 1/8 2 11/16 C3 X 4.1 30 3-4 1 1/2
4 223 42 1-2 3 1/2 5 1/2 5  9/16 1 1/8 2  5/16 C3 X 4.1 30 3-4 1 1/2
5 299 44 1-2 3 1/2 5 1/2 5  9/16 1 1/8 2 3/8 C3 X 4.1 30 3-4 1 1/2
6 399 56 5-8 4 6 3/4 6 5/8 1 1/4 2 15/16 C3 X 4.1 36 1 2
7 532 65 5-8 4 6 3/4 6 5/8 1 1/4 2 11/16 C3 X 4.1 36 1 2
8 713 67 5-8 4 6 3/4 6 5/8 1 1/4 2 3/4 C3 X 4.1 36 1 2
9 950 128 3-4 4 7 11/16 8 5/8 1 1/2 3 13/16 C4 X 5.4 36 1 1/4 2
